Micro Systems is forward thinking and making advances in micro and nano manufacturing processes. We utilize many ground breaking techniques to solve complex micro manufacturing problems and significant progress is being made as we move from micro to nano manufacturing.

Medical Device

  • Drug delivery system: micro needle, injector pen, auto injector pen, soft mist inhaler, etc.
  • Medical Micro: PEEK Bone Implants
  • Surgical components.
  • Other customized medical device applications as required.
peek bone implant capillary clamp medical mold

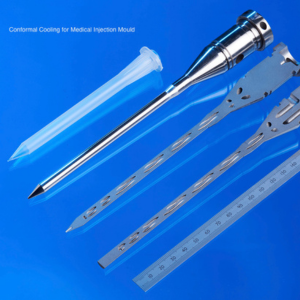

PEEK bone implants Conformal Cooling Capillary clamps

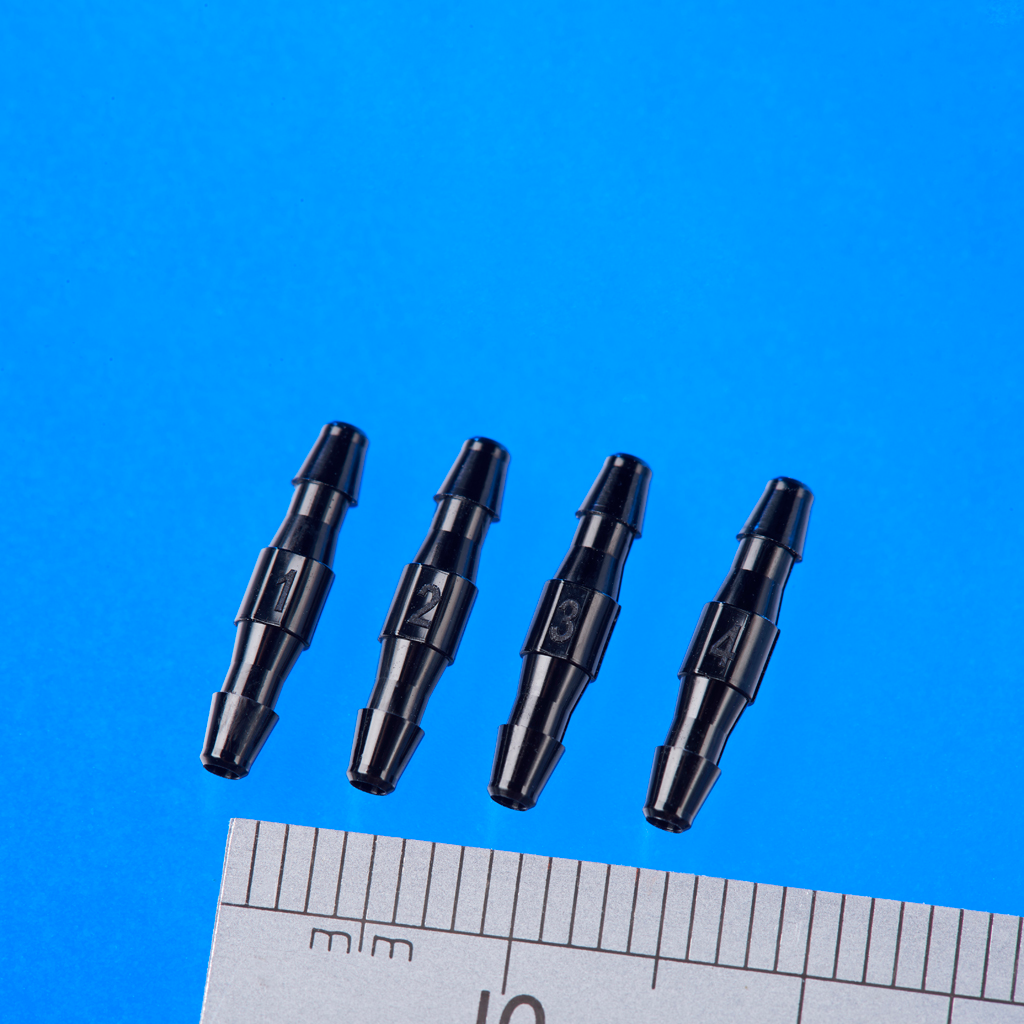

medical tool Micro tube connector peek implant
Ultra-precision tool Ultra-precision tool PEEK implant

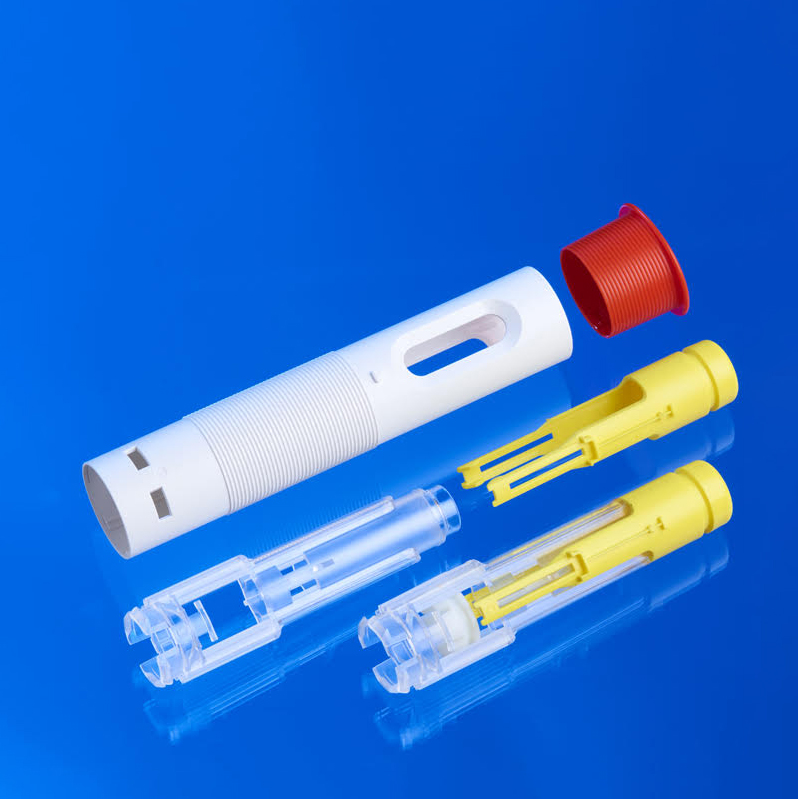

inhaler micro mold Nasal inhaler micro mold Injection pen micro mold
Inhaler Nasal inhaler Injection pen



Diagnostic Device – Microfluidics

  • Filtration, Mixing, Droplet Generation features
  • Low, Medium, High-Volume production moulding
  • Optical chambers < 20nm Ra
  • 10-50 micron typical feature size, 0.5 micron repeatable accuracy

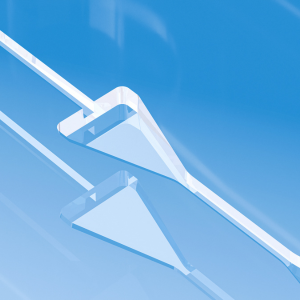

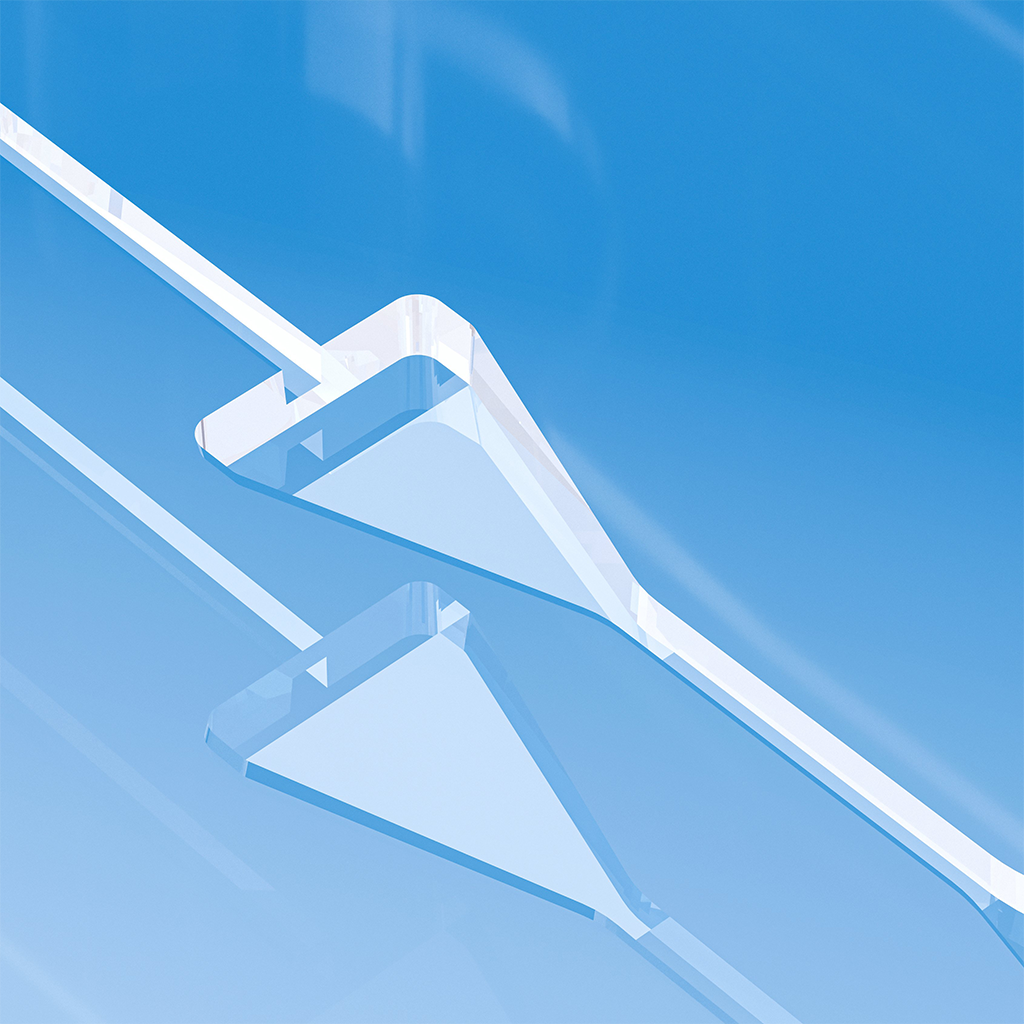

microfluidic chip microfluidic chip holding microfluidic chip
Microfluidic chip Microfluidic chip Microfluidic chip
microfluidic chips holding uk microfluidic chip mold uk lab on a chip molding
Microfluidic chip Microfluidic chip mold Microfluidic chip



Medical Mold Design & Manufacture

  • Single Cavity Prototype
  • 2-4 Cavity Pre-production molds
  • 8-32 Cavity Full Production molds
  • 2 material molds
  • Micro molds
medical mold uk multi cavity mold making ultra precision mold making
Medical Mold Multiple cavity Mold Ultra-precision Mold
exchangeable mould insert micro mold making mold design
Medical Mold Micro Mold Mold Design to Manufacture



Contact us to discuss your Medical Mold Design, Mold Manufacture and Injection Molding projects!
